Dry Van Trailers
Available with GPS tracking
Composite plate construction for increased capacity and durability
Galvanized rear frame
Available with aerodynamic packages including skirts and low-rolling resistance tires
All LED lights
Composite door panels
All equipment is available in various specifications to meet your specific needs.

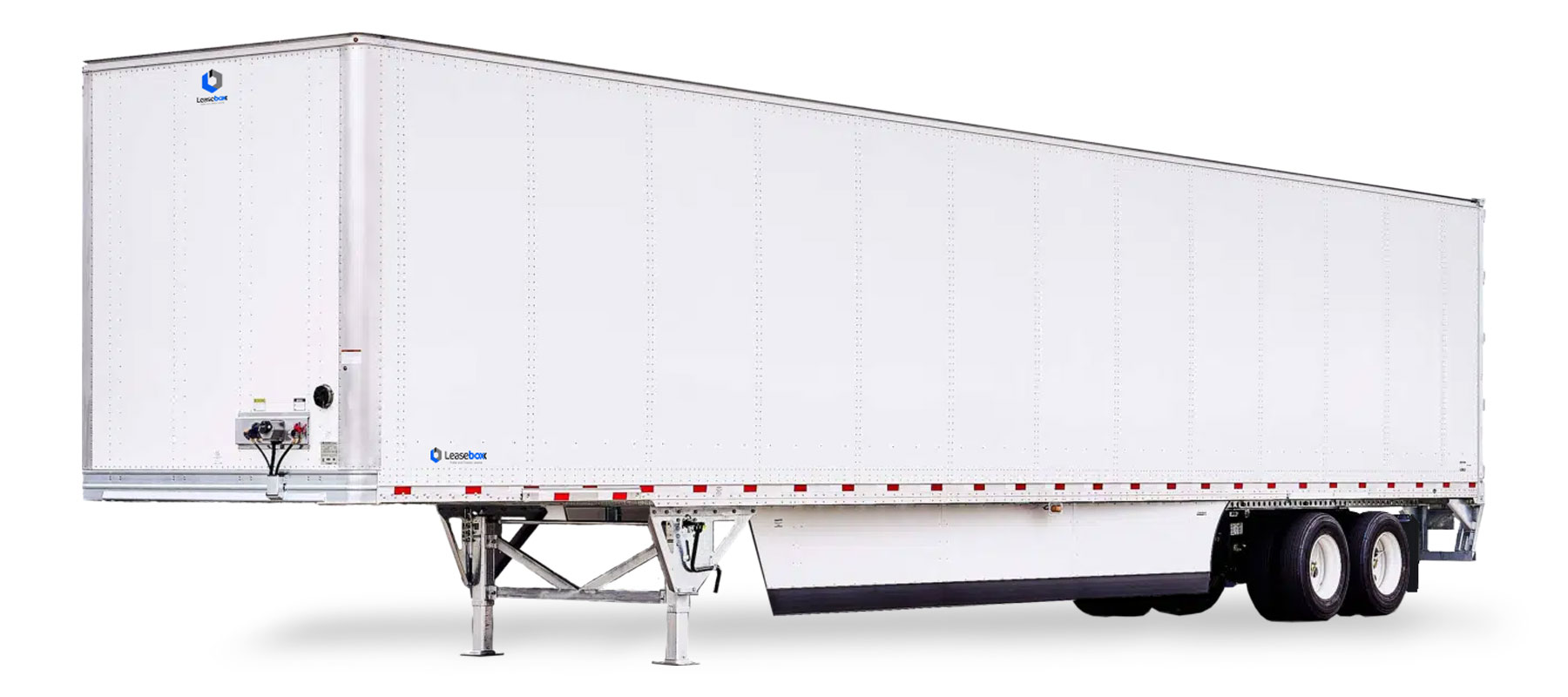

*Visual representation, for illustrative purposes only. Actual units may differ depending on location and availability.
Features/Benefits
Reduce Fuel & Optimize Efficiency
- Aerodynamic side skirts
- Low-rolling resistance tires
- Increased cube capacity
- Increased floor capacity
- Trailer tracking w/ cargo sensor
- Air-assisted slider pin release
Extended Maintenance
- Synthetic grease wheel ends
- LED lights
- Self-lubricating landing gear
- Heavy-duty slider boxes
- Swivel gladhands
Damage Resistant
- Composite panels, doors and nose liners
- Increased floor capacity
- Hat-type crossmembers
- Forklift protection package
- Heavy duty nose scuff
Specifications
53' Composite Plate Van, Spring Ride, Swing Doors
Overall Length
53'
Overall Width
102 3/8”
Overall Height
13' 6"
Coupler Height
47"
Kingpin Setting
36"
Dock Height
49.3"
Inside Width
101"
Inside Height
110"
Door Opening
110" height x 98" width
Cubic Capacity
4,060 cubic feet
Weight
14,000 lbs +/- 3%
Suspension
Full slide range, variable-position tandem axles with spring-ride suspension on a heavy duty slider box. Air-assist slider pin release system.
Axles
P-spindle 1/2" axle wall, 22,500-lb. capacity with synthetic wheel-end lubricant
Side Skirts
Fuel efficient, aerodynamic advanced trailer skirt - U.S. EPA Verified SmartWay Technology
Tires
295/75R 22.5 low rolling resistance radial tires - U.S. EPA Verified SmartWay Technology
Wheels
8.25" x 22.5" steel hub-piloted wheels
Brakes
16-1/2" x 7" x 3/4" s-cam, quick-change, extended life brake shoes. Some 2019-21 models come with air disc brakes; 16/24 brake chambers; spring brake priority valve.
ABS
2 sensor / 1 modulator-valve system
Upper Coupler
AAR certified coupler with 5th-wheel plate. Interior coupler surfaces sealed with corrosion resistant coating
Crossmembers
4" steel I-beam crossmembers on 10" centers with additional crossmembers at rear. Inverted-hat crossmembers from landing gear forward
Landing Gear
AAR certified, 2-speed self-lubricating landing gear with internal gearbox and cushion sand shoes
Panels
Smooth sidewall design, constructed of a high density polyethylene plastic core bonded between two high strength steel skins
Cargo Control
Aluminum "A" slotted logistics seams on 50" centers
Roof
One-piece aluminum roof
Floor
1-3/8" laminated hardwood floor secured by 3 screws per board at each crossmember; 24,000-lb. floor capacity
Scuff
Side – Integrated with bottom rail including 18ga. x 6.5" corrugated steel for a full 11” height. 12" smooth steel plate in nose of trailer
Rear Doors
1/2" or 10mm composite panels swing-doors, with 5 hinges and 1 locking-rod per door
Lights & Wiring
LED lights with a fully sealed wiring harness and internal ground
Electrical Connections
7-way ATA plug with no circuit breakers
Air Connections
Swivel gladhands mounted on roadside
Trailer Tracking
Solar-powered advanced trailer tracking system with built-in cargo sensor; no connection to 7-way necessary
Trailer specification features may vary based upon manufacturer, model year, trailer type and location. Equipment is subject to availability at each location.
